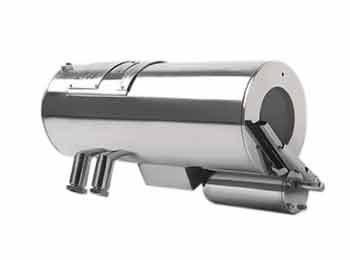

SHEX 930

SHEX930 Series Explosion-proof Integrated PTZ Camera System is used in the places, where isclassified as Zonel or Zone2, contained GroupIA, GroupIB and GroupIc gases, contained themixture circumstance with the explosive gas atmospheres and flammable mists or dusts , where isclassified as Zone21 or Zone 22. lt is made in stainless steel with lp68 protection level. ltaccommodates most camera / lens combinations with sunshield and wiper matched. lt transmitsreal-time video and on-the-spot scanning, with functions of real-time video storage and remoteon-line transmission etc..

Model	SHEX 930	SHEX 930A
Certification Parameter
Manufacturers Standard	EN60079-0:2018, EN60079-1:2014，EN60079-28:2015,  EN60079-31:2014,
Configuration Mode	front and rear covers with threaded flameproof joints
Explosion-proof Mark	II2 G Ex db IIC  T6 Gb， II2 D Ex tb IIIC T80℃ Db
IP	IP68 (2m / 2h)
Operating Temperature	-40-60℃
Cable Entries	2×G1/2” Explosion-proof cable entries
Operating Environment	places, where is classified as Zone1 or Zone2, contained GroupⅡA, GroupⅡB and GroupⅡC gases, contained the mixture circumstance with the explosive gas atmospheres and flammable mists or dusts , where is classified as Zone21 or Zone 22
Mechanical Features
Material	0Cr18Ni9(304) / 00Cr17Ni14Mo20(316L)
Wiper	Inside	NO
Wiper rotation speed	1 count / s	NO
Electric motor	The permanent magnetism electrical motors of high torque matches the planetary gear reducer of high precision
Sight Glass Dimensions	Φ74 mm
Outside Dimensions	405×165×215
Inside Dimensions	Φ125×330 mm
Weight	12 Kg	10 Kg
Built-in Control Device
Control Device	AVR singlechip with RSIC kernel
Control connector	Switch Signal
Camera	SONY, SAMSUNG, CNB, HITACHI etc. Optional
Current	500 mA
Voltage	AC110~240V, 50/60Hz, AC24V, 50/60Hz
Current	1 mA/ 0.5m A / 0.1 mA
Others
Sunshield	Fitted as standard
Power module	Fitted as standard
Inner heating	Fitted as standard
